Category | 01
Deployable Flood Barrier Systems
Rapidly deployed, FM/ANSI 2510-approved flood barriers, commonly called flood panels, for building openings and perimeter segments while preserving day-to-day access and operations.
Engineered, Permitted, Site-Integrated, and Supported by FloodReady
FloodReady delivers engineered flood mitigation systems for industrial and essential facilities, including design, permitting, installation, and long-term support under defined flood conditions.
System Applications
Deployable systems are well suited for facilities that require temporary or seasonal flood mitigation without permanent obstructions.
Common applications include:

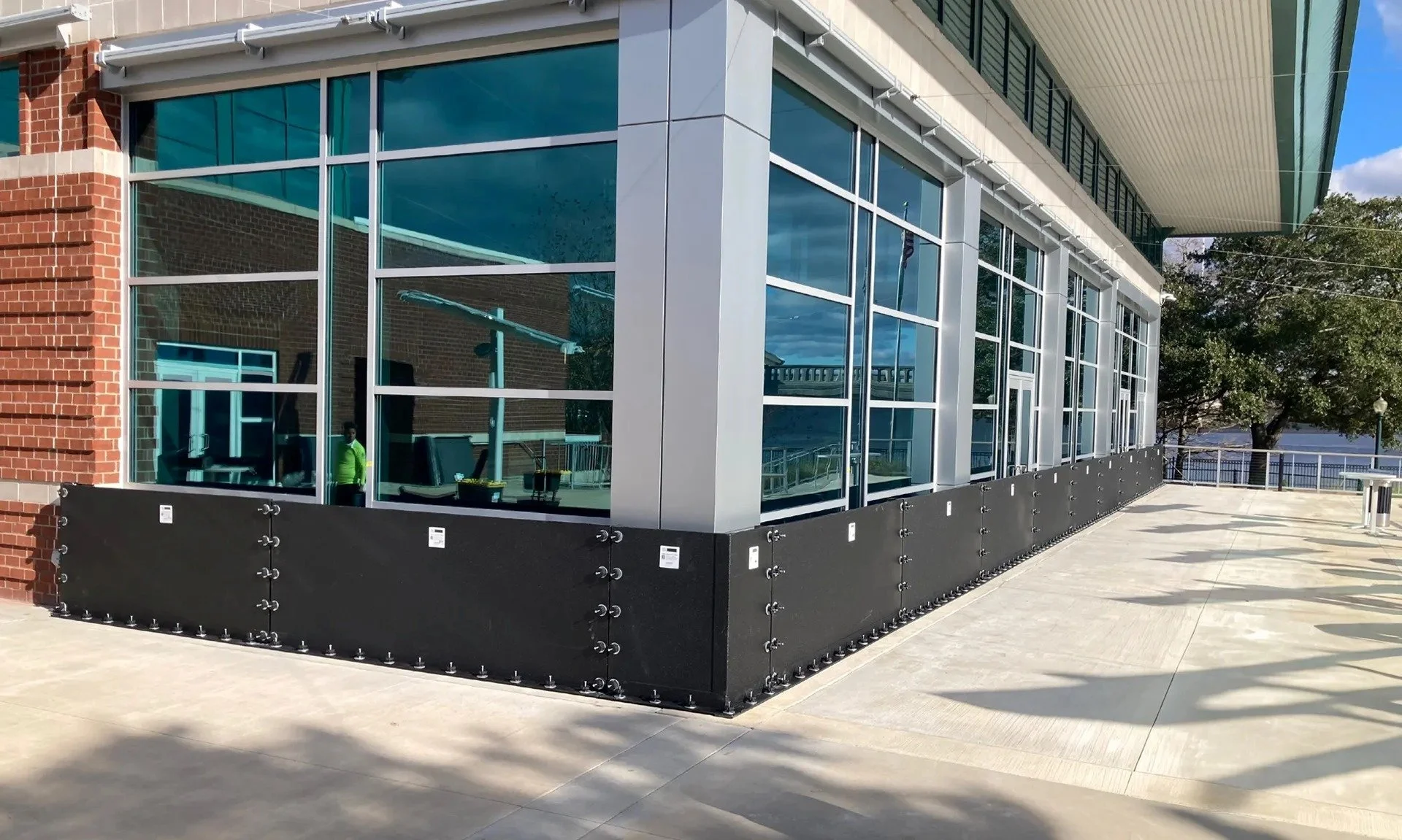

Building entrances and storefront openings
Parking garage and ramp entrances
Courtyards and internal site perimeter segments
Critical power, water and other utility fields
Critical access points requiring daily use
System Considerations
System selection depends on site conditions, operational needs, and long-term ownership considerations.
-
Engineered for site-specific condition and flood risks
Designed to protect wide openings and perimeter segments
System options available based on compliance requirements
Durable sealing interfaces with replaceable sealing components
-
Rapid deployment by trained facility personnel
Configurable protection lengths and barrier heights
Minimal visual impact when not deployed
-
No permanent gates or obstructions during normal operations
Organized storage and readiness solutions available
Inspection, training, and long-term service support provided
System Configurations
Deployable flood barriers are assembled from coordinated components selected based on site geometry, design criteria, and operational needs.
Flood Log (Plank) Barriers
Manufacturer:
Flood Panel of Floodproofing.com

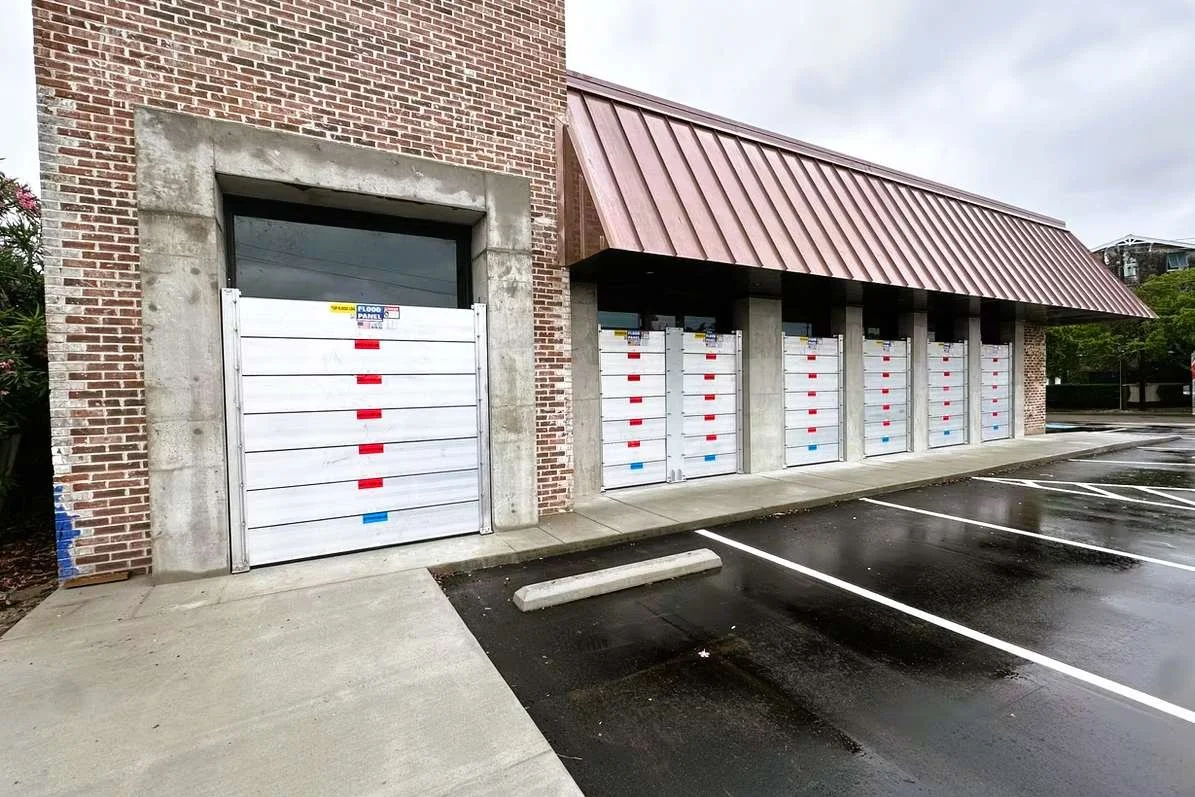

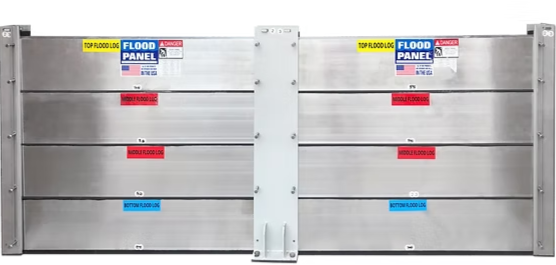

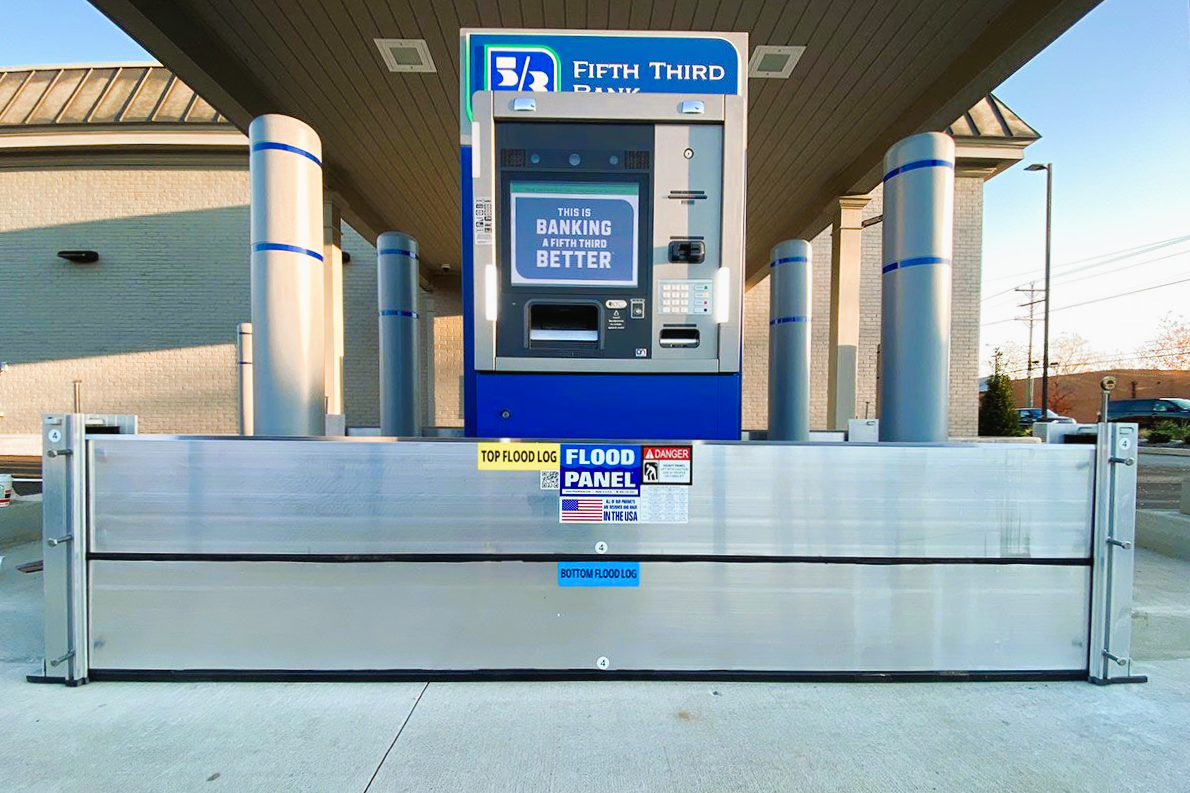

Flood log (plank) barriers are modular, vertically stacked aluminum barrier assemblies engineered to withstand site-specific flood loads, debris impact, and high-velocity flow conditions. These systems are widely used in flash-flood and hurricane-prone environments and have a long, proven national track record. Certified system options are available that meet or exceed applicable ASCE requirements and comply with FM/ANSI standards.

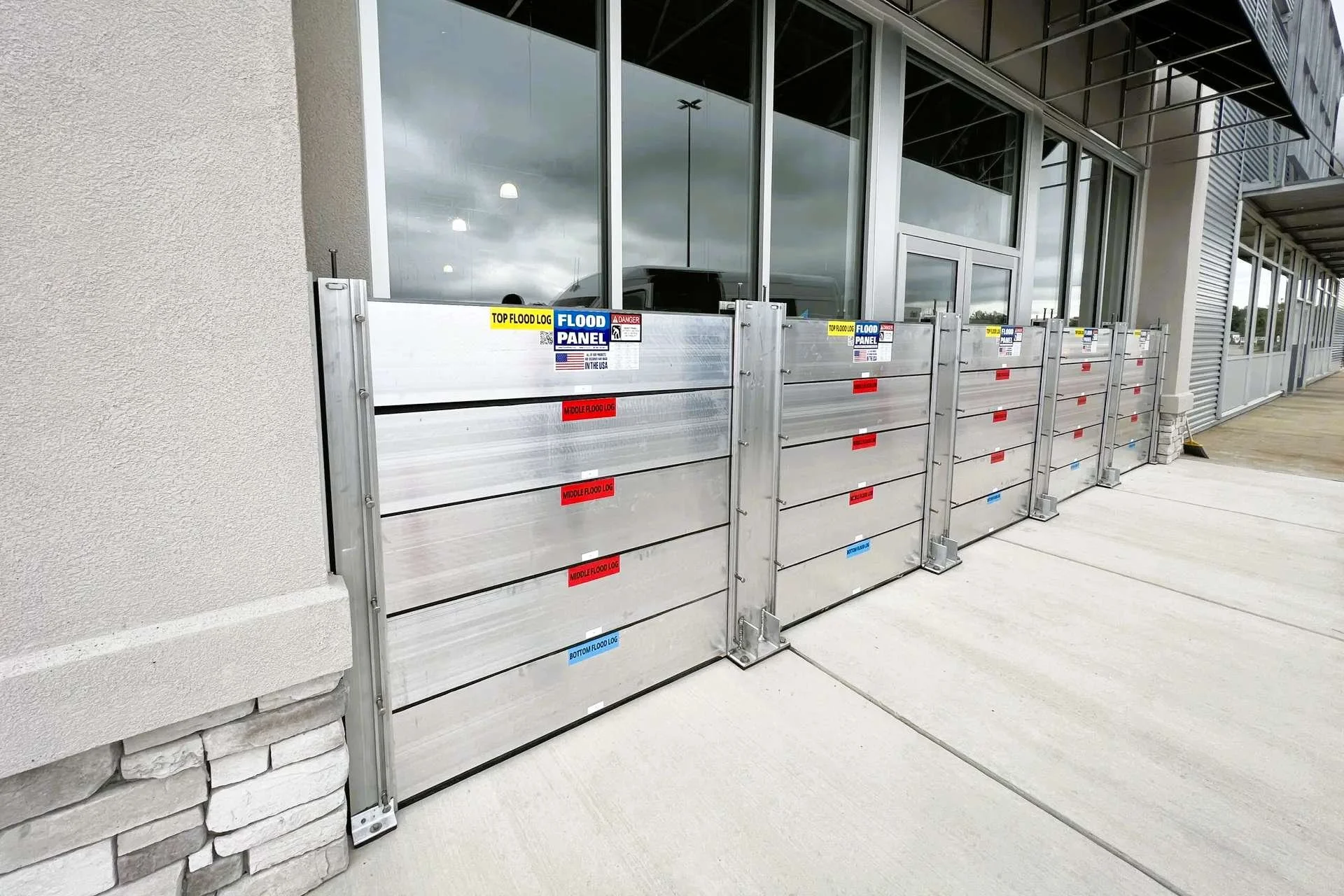

Flood log (plank) systems are designed to protect wide openings and perimeter segments under defined flood conditions. Individual logs are installed within fixed side receiver frames and sealed at each interface to resist hydrostatic and hydrodynamic pressures during flood events.
Common characteristics include:
Structural extruded aluminum barrier logs
Anchored side receiver channel frames
Replaceable compression sealing gaskets
Scalable protection heights by design
Lightweight components for rapid deployment
Efficient on-site storage solutions
Flood log systems can be engineered in multiple configurations, from large openings to extended perimeter runs. Final design considers substrate capacity, anchorage, flood loading, and operational constraints to ensure reliable system performance.
Discuss with a Licensed Engineer
Flood Shield Panels
Manufacturer:
Flood Panel of Floodproofing.com

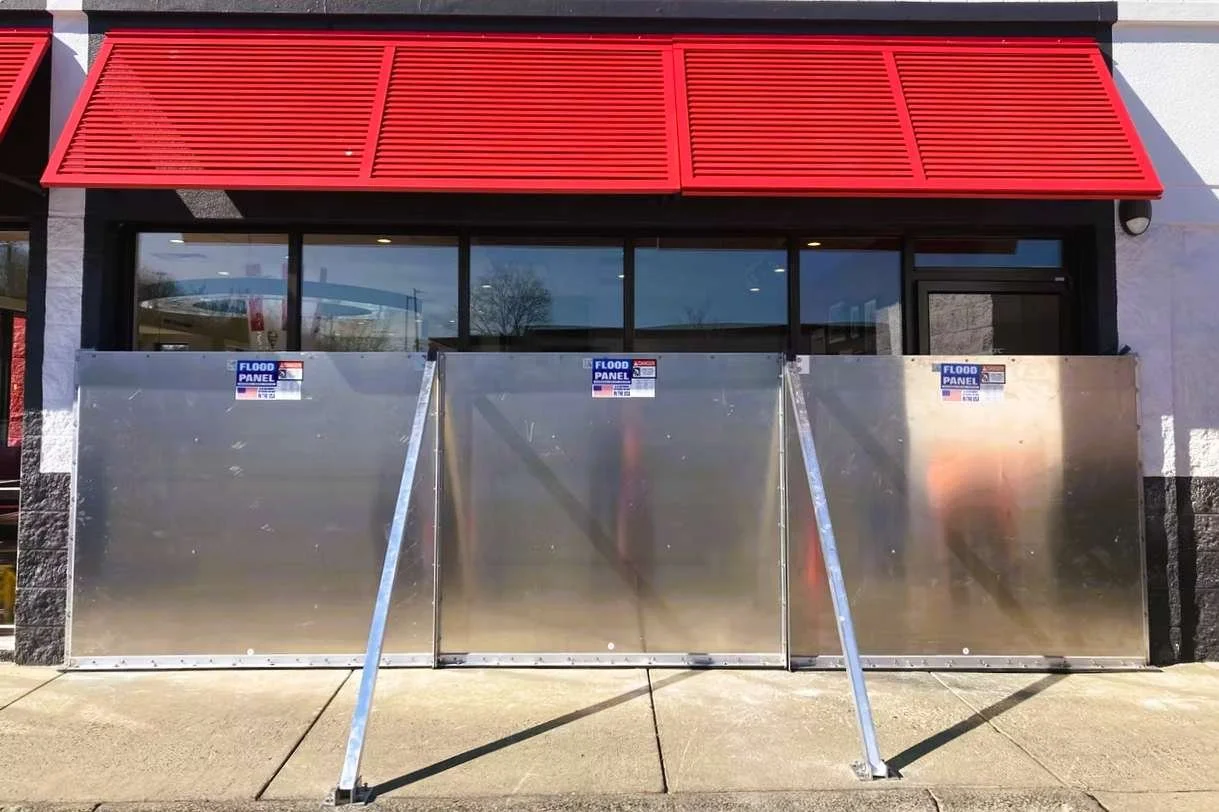

Flood Shield Panels are removable aluminum flood barrier assemblies designed to protect individual openings such as doors, storefronts, windows, and vehicle access points under defined flood conditions.
Flood shield panels are custom-engineered to match site geometry and design flood elevation, then installed into fixed mounting frames and sealed with compression gaskets to resist hydrostatic pressure and hydrodynamic floodwater impact. Depending on opening width and loading requirements, Shield panels may incorporate mid-span supports or angled braces to maintain structural performance.
Common characteristics include:
Custom aluminum removable barrier panels
Engineered anchorage and mounting frames
Compression sealing gasket interfaces
Mid-span supports or bracing elements
Rapid deployment by trained personnel
Flood Shield Panels are well-suited for facilities requiring targeted opening protection, openings where deployable protection is preferred over permanent passive solutions. It also allows installations along sloped surfaces, or locations where rapid deployment and minimal visual impact during normal operations are required.
Discuss with a Licensed Engineer
Deployable Flood Barrier Accessories
Manufacturer:
Flood Panel of Floodproofing.com

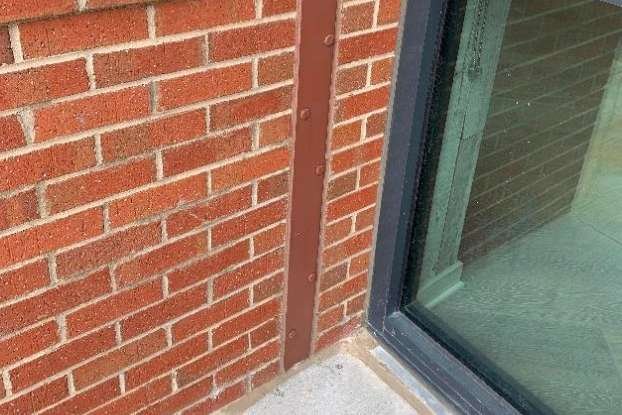

Flood barrier accessories enhance deployment readiness and system performance. Solutions include organized storage racks for deployable components and custom wall or mounting plates designed to accommodate existing finishes, preserve architectural aesthetics, and provide proper alignment, sealing surfaces, and structural attachment.
* Configured based on site-specific flood exposure, opening conditions, access needs, and permitting requirements.
Discuss with a Licensed Engineer
The FloodReady Difference
Engineering-Led
Flood mitigation systems are engineered for site-specific flood conditions, loading assumptions, and operational constraints, not selected from standard catalogs.
Permitting Expertise
We coordinates building and floodplain permitting to verify systems meet regulatory requirements and are accepted by local authorities
Specified Reliability
Systems are specified, detailed, and integrated by certified professionals to meet proper fit, sealing criteria, and long-term performance in real-world conditions.
Lifecycle Support
FloodReady provides training, inspections, and ongoing service to maintain system readiness throughout ownership, beyond initial integrations.
